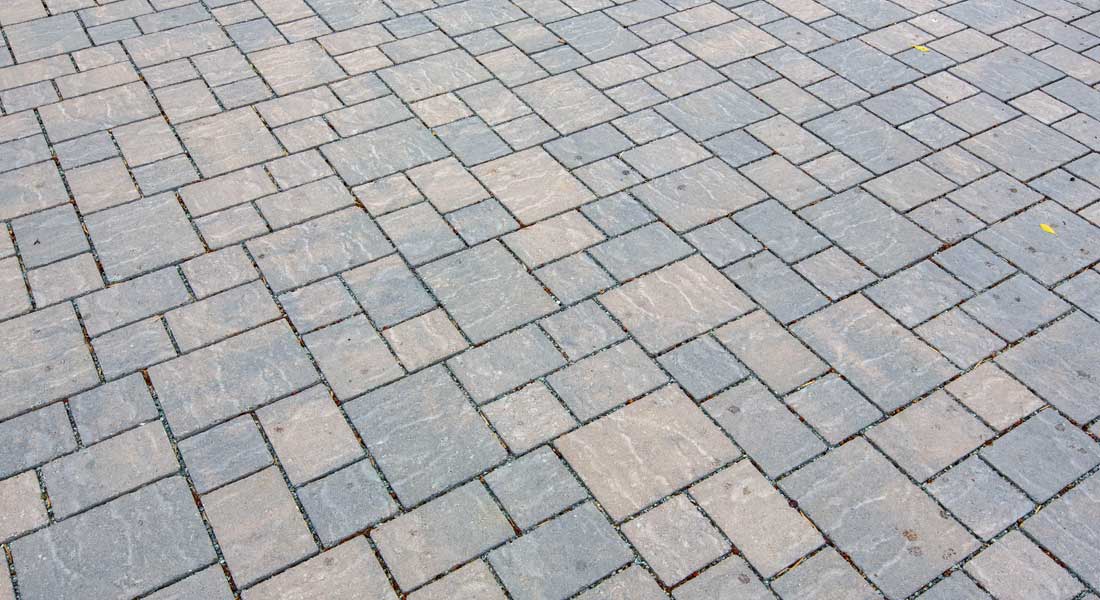

The Bella Vista HydroLogic Permeable concrete Pavers are an ideal choice for both residential and commercial permeable paving applications. Permeable concrete pavers are a small, but integral part of a much larger permeable paver system which requires professional engineering on a project-specific basis. The Bella Vista HydroLogic Permeable Concrete Pavers come with a cleft surface that mimics the look of natural stone.
NOTE: Colors may vary compared to what is displayed online. To ensure satisfaction, please view actual product samples.
* = Denotes Special Order Colors. Minimum quantity order required
NOTE: Colors may vary. Please view actual product samples.
NOTE: Colors may vary. Please view actual product samples.
NOTE: Colors may vary. Please view actual product samples.
NOTE: HydroLogic Permeable Pavers are Sold in Pallet Quantities Only. A mixture of all sizes is included on each pallet. All sizes are nominal.
Compressive Strength: Average 8000psi (55MPa). Conforms to ASTM C936 requirements.
| A: Jumbo | |
|---|---|
| Thickness: | 3.15" (80mm) |
| Width: | 11" |
| Length: | 8.25" |
| B: Rectangle | |
|---|---|
| Thickness: | 3.15" (80mm) |
| Width: | 8.25" |
| Length: | 5.5" |
| C: Square | |
|---|---|
| Thickness: | 3.15" (80mm) |
| Width: | 5.5" |
| Length: | 5.5" |
| Pallet Specs | |
|---|---|
| Sqft: | 90 sqft |
| Weight: | 2980 lbs |
Jumbo 37.5% | Rectangle 37.5% | Square 25%
Jumbo 37.5% | Rectangle 37.5% | Square 25%
Jumbo 37.5% | Rectangle 37.5% | Square 25%
The simplified explanation of what a permeable system is designed to do is to eliminate runoff and allow rain water to penetrate into the ground at a specific site. This is accomplished through a Permeable Paving System. Permeable concrete paver systems are a combination of permeable concrete paving units, joint material, an underlying bedding course, reservoir, and other components defined by site-specific engineering and design.
Each permeable paver system will be engineered to its own site specifications and therefore there is no one designed system that will work for all applications. Such factors as estimated rainfall, existing soil conditions, and amount of permeability required will all factor in to the design and engineering of the permeable paver system.
For more information on the construction of permeable paver systems, please contact the RCP Block & Brick Architectural Support Staff.
The select Bella Vista interlocking concrete paver styles: Antique Cobble, Stonetop, Stonetop Tumbled, Catalan, Old Town/Holland, and HydroLogic Permeable Pavers; all meet or exceed the requirements of ASTM C936.
When these paver styles are installed by a qualified paver installer (who guarantees their workmanship for 5 years), RCP Block & Brick guarantees the Bella Vista Pavers styles listed above against manufacturing defects for as long as you own your home. If product is installed by homeowner, utilizing installation guidelines recommended by the Interlocking Concrete Pavement Institute (ICPI), the product guarantee shall be for a period of 5 years from the date of purchase. Color matching cannot be guaranteed and replacement labor is not included.
The guarantee does not apply to splitting, chipping, or other breakage that could be caused by impact, abrasion, or overloading. RCP Block & Brick's obligation is limited to supplying new material, at no charge, to replace the defective product. Installation costs remain the responsibility of the buyer. RCP Block & Brick's lifetime guarantee on its Bella Vista line of interlocking concrete paver systems is intended for residential applications and will apply only for as long as you own your property.
